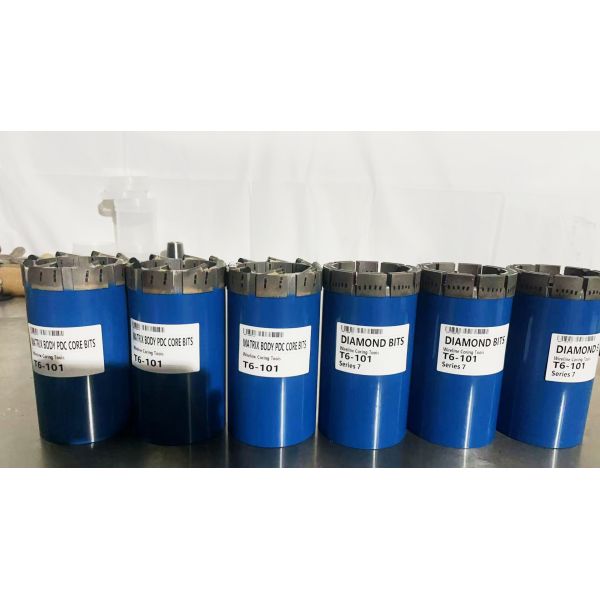

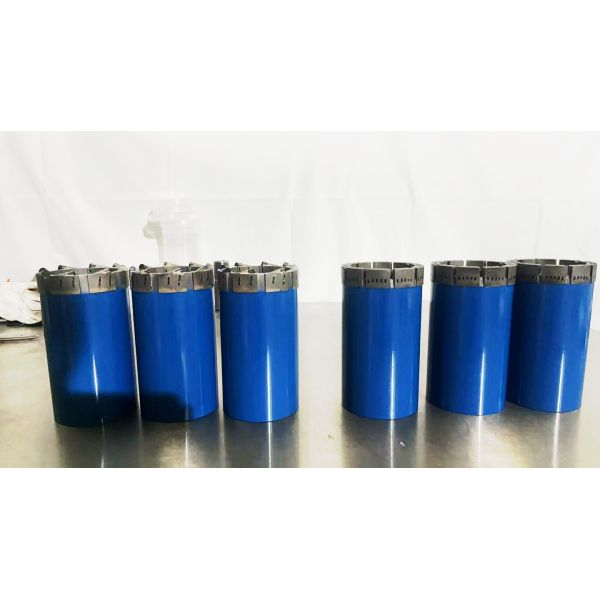

T6-101 Impregnated Diamond Core Bit with Standard Crown Profile and Face Discharge Waterways for Mining Exploration

  • 1
  • 2
  • 3

Brand Name : MIROC

Model Number : T6-101

Certification : ISO

Place of Origin : CHINA

MOQ : 1

Supply Ability : 3000

Delivery Time : 20-30

Type : Core Drill Bit

Material : Diamond

Crown Profile : Standard

Waterways : Standard /Face Discharge /Turbo /Spiral

Applicaion : All Conventional And Wireline Core Barrel

Use : Mining Exploration Diamond Drilling

Contact Now

T6-101 Diamond Core Bit with Diamond for Mining
Product Description
The T6-101 Impregnated Diamond Core Bit is designed for surface exploration when used with the T6 series core barrel. These impregnated bits can penetrate a broad range of formations from soft to extremely hard rocks.
Manufactured with high-quality synthetic diamonds evenly distributed through a tungsten carbide matrix, these bits wear evenly during drilling, continuously exposing new, sharp diamond points throughout their lifespan. All impregnated bits feature T.C. and diamond gauge protection, with optimal diamond size, concentration, and matrix composition tailored to specific rock formations.
Size Specifications
Size Outside Diameter (inch) Outside Diameter (mm) Inside Diameter (inch) Inside Diameter (mm)
T6-76 2.997/2.987 76.12/75.87 2.249/2.239 57.12/56.87
T6-86 3.391/3.381 86.13/85.88 2.643/2.633 67.13/66.88
T6-101 3.981/3.971 101.12/100.8 3.115/3.105 79.12/78.87
T6-116 4.575/4.560 116.20/115.8 3.667/3.657 93.14/92.89
T6-131 5.165/5.150 131.19/130.8 4.257/4.247 108.13/107.89
T6-146 5.755/5.740 146.18/145.8 4.847/4.837 123.18/122.89
T6-101 Impregnated Diamond Core Bit with Standard Crown Profile and Face Discharge Waterways for Mining Exploration
T6-101 Impregnated Diamond Core Bit with Standard Crown Profile and Face Discharge Waterways for Mining Exploration
Applications
Impregnated diamond core bits (including NQ, HQ, T2-76 models) are widely used in mineral exploration and site investigation industries. These bits have become the standard in mineral exploration due to their superior performance advantages:
  • Extremely wide range of applications across various rock formations
  • Consistent performance in both soft and hard rock conditions
  • Long service life with continuous diamond exposure as the matrix wears
T6-101 Impregnated Diamond Core Bit with Standard Crown Profile and Face Discharge Waterways for Mining Exploration
T6-101 Impregnated Diamond Core Bit with Standard Crown Profile and Face Discharge Waterways for Mining Exploration
T6-101 Impregnated Diamond Core Bit with Standard Crown Profile and Face Discharge Waterways for Mining Exploration
T6-101 Impregnated Diamond Core Bit with Standard Crown Profile and Face Discharge Waterways for Mining Exploration
